SKQ is deeply rooted in the field of new energy intelligent equipment, with power battery and energy storage battery intelligent equipment as the core, products cover battery assembly, module molding, PACK packaging, battery recycling and dismantling and other lithium battery manufacturing processes, enabling lithium battery intelligent innovation and rapid development. Through years of hard work, the company has become a leading system integrator in the field of new energy intelligent equipment, among which, in 2021 the company’s lithium battery module PACK equipment market share ranked second in the industry. The company has established long-term and stable cooperation with CATL, CALB, Gotion High-Tech , EVE Energy, REPT BATTERO and other head lithium battery enterprises and Geely, SAIC, Xiaopeng, Leapmotor and other well-known new energy vehicle brands.
Cell Equipment
Covers non-destructive XRAY (2D) lithium battery testing equipment, battery core online rapid CT testing equipment, battery core top cover photo testing equipment, top cover welding (peripheral welding/sealing nail) equipment, blue film coating machine, full-automatic aluminum shell/large soft core drying system, battery core rewrapping line, full-automatic OHT handling equipment, etc., covering key links such as testing, welding, drying, coating, handling, etc. in the battery core production process.
Efficient and intelligent integration
Production efficiency meets the requirements of 12-35PPM production line. The fully automatic OHT handling equipment realizes unmanned operation with repeated positioning accuracy of 1mm and maximum load of 1T.
Multi-specification compatible adaptation
Can be flexibly adapted to various types and specifications of cell products to support mixed line production needs.
Full life cycle low cost
The total cost of pre-investment and post-maintenance is controllable, reducing operational pressure and improving return on investment.
CTP/CIR line
Covering battery cell on-line, FPC visual inspection, protection bracket installation inspection and OCV test, module cache, battery cell gluing, automatic box on-line, pre-stacking, automatic gluing, pole photographing, automatic module into the box, BSB visual inspection, automatic upper cover tightening, module stacking and shaping, end plate feeding, module bottom cleaning into the box, bottom box on-line, box gluing, CCS assembly, Busbar welding, liquid air-tight cooling test, whole package air tightness test DCR test, PACK weighing and off-line, etc, the main line has 61 stations, with a production line size of 160m × 17m × 4.5m, including the first blade battery production scheme using CTP process, realizing integrated production from battery core to PACK.
Double working condition efficient capacity output
Blade battery production capacity of 27ppm, general working condition product beat 15JPH, adapt to different large-scale production needs.
Flexible Integrated Production
Supports a variety of blueprint mixed line operations, stacking and shaping process is highly integrated, the use of double transplanter double conveyor line to achieve automatic capture of the module into the box, adapt to a variety of products.
Accurate quality control of the whole process
Robot vision system customized glue valve to achieve high-viscosity glue precision glue, configuration of multi-station gas inspection, electrical inspection links, layer by layer to build a solid quality defense line.

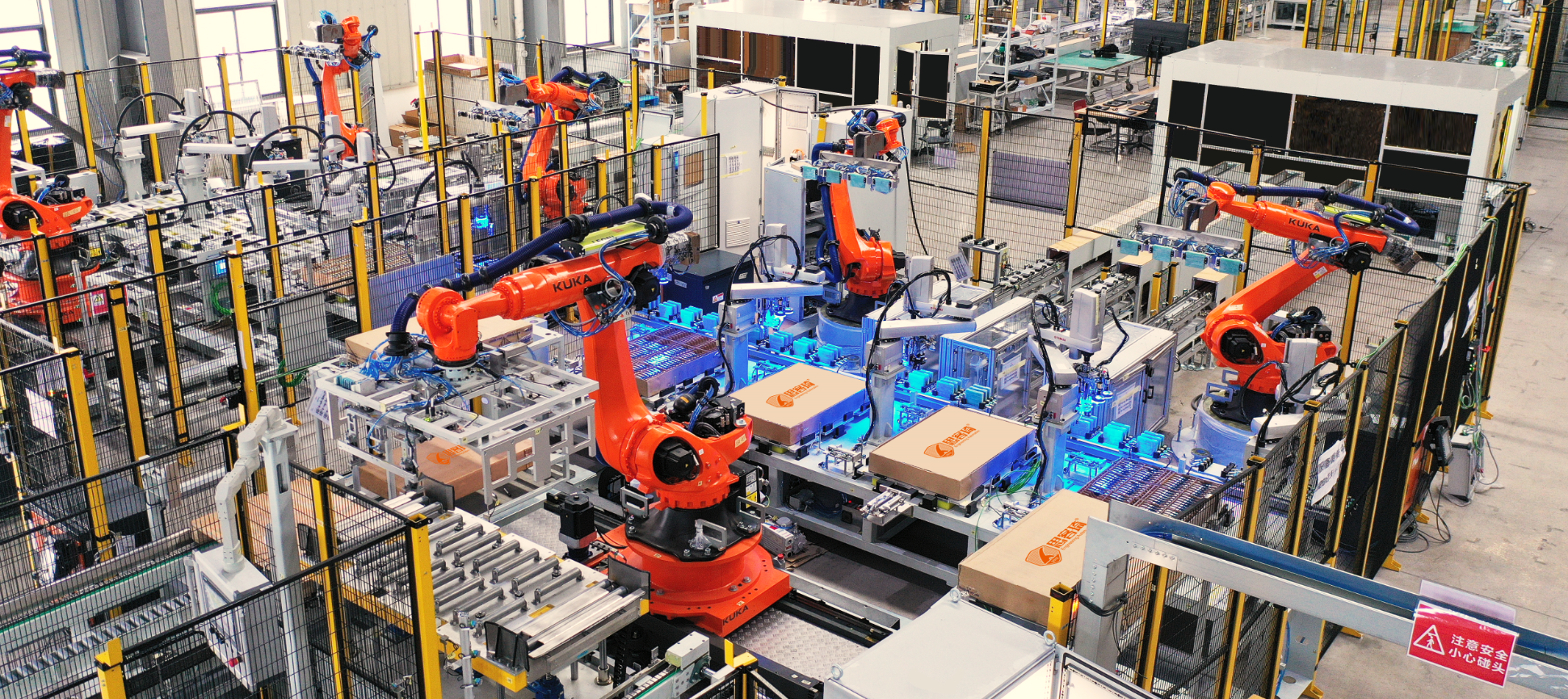

Module PACK production line (universal)
Covers the whole process of battery cell feeding, module stacking, side seam welding, heating and curing, module entering the box, gas and electricity testing, weighing off-line, etc., and adopts powered and unpowered roller conveying forms.
Narrow space adaptation design
Roller conveying form, can be in the width of the limited space efficient operation.
High viscose efficient coating
Adaptation of high viscosity glue fast glue, guarantee the amount of glue, glue shape and beat standard.
Intelligent anti-stay and error prevention
Integrated visual inspection technology to avoid the deviation of the module into the box position.
Module high speed line
Covers OCV testing, cell matching and code scanning, plasma cleaning, side seam welding, aluminum bar welding, EOL testing, module cache library and other processes, focusing on high-beat mixed line production.
Ultra high speed production efficiency
Under the comprehensive working condition of 85% OEE, the efficiency reaches 0.56 seconds/cell (108PPM).
Flexible mixed line adaptation
Supports long/short modules according to flexible ratio formula mixed line production.
High precision and stable welding
Large size side seam welding process to ensure welding accuracy and stability.
Module line (strap process)
Covering battery cell feeding, OCV test, cleaning and gluing, BusBar welding, module baking, shaping and packaging, pressure test and other processes, the binding process is used to realize module molding.
Full-size compatible adaptation
Tooling without replacement accessories, compatible with all specifications of the battery size.
Continuous production guarantee
Incoming material level, blanking material level and NG position can be stopped for 1H to avoid production interruption.
Cost reduction and efficiency enhancement upgrade
Significantly reduce the intensity of labor, significantly improve the production rhythm.
Module line (side seam welding)
For the design of square aluminum shell cell modules, it covers processes such as cell plasma cleaning, end plate insulation board treatment, module stacking, side plate welding, pole detection, EOL testing, etc. The entire line operates automatically.
High beat automation
The whole line beats 12ppm, and the automation rate is at a high level in the industry.
Multi-specification compatible adaptation
Applicable to a variety of square aluminum shell battery modules, wide adaptability.
Stable and reliable operation
Continuous research and development iteration optimization, equipment operation stability is strong.
Dismantling equipment
Includes battery pole welding meat milling equipment, module dismantling machine, PACK module dismantling line, focusing on the dismantling of battery, module and PACK to provide an overall solution.
Green closed-loop development
Practice the concept of green economy, to help the lithium-electric industry closed-loop development.
Full Level Disassembly Overlay
Covers the cell-module-PACK full-level disassembly requirements and the solution is complete.
Customized special design
Targeted adaptation of lithium-ion product dismantling characteristics, high dismantling efficiency.
Collaborative robot
Include special collaborative robots such as PACK tightening, module labeling, pole burr grinding, etc., which can be adapted to the flexible operation requirements of various production scenarios.
Rapid deployment landing
Is light and compact, and the mechanical arm can be installed in 3 hours by a single person.
Simplified Programming Operation
1 hour to complete easy programming, no need to be proficient in programming language.
Multi-mode Flexible Collaboration
Supports man-machine, dual-machine and multi-machine cooperation, and adapts to fast switching of multiple scenes.
